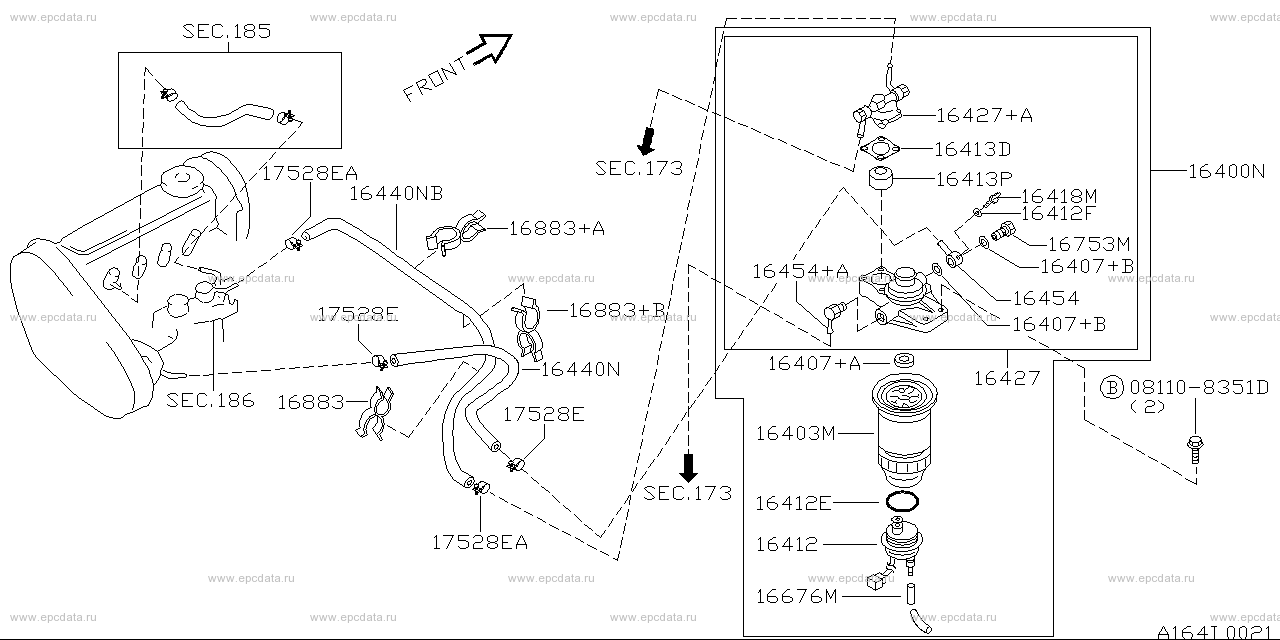

164 - fuel injection & strainer (engine) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ) drive 2WD (two-wheel drive ) Manufacture period 01.1998 - ... grade FX2 transmission MT (manual transmission )

---

Applies for models	Manufacture period	Spec
CD20ET	01.1997 - 01.1998	標準 仕様
CD20ET	01.1998 - ...	標準 仕様

Open full screen picture Up to the top

081108351D 16400N - strainer assembly, fuel 16403M - cartridge assembly, fuel filter 16407+B - packing 16412 - sensor assembly 16412E - seal,O ring 16412F - seal,O ring 16418M - cock, pump priming 16427 - cover assembly, float 16440N - hose, fuel 16440NB - hose, fuel 16676M - tube, vinyl 16883 - clip 16883+A - clip 16883+B - clip 17528E - clamp, hose 17528EA - clamp, hose

---

Applies for models	Manufacture period	Spec
*CD20ET	01.1997 - 01.1998	寒冷地 仕様
*CD20ET	01.1998 - ...	寒冷地 仕様

Open full screen picture Up to the top

081108351D 16400N - strainer assembly, fuel 16403M - cartridge assembly, fuel filter 16407+A - packing 16407+B - packing 16412 - sensor assembly 16412E - seal,O ring 16412F - seal,O ring 16413D - packing 16413P - valve, float 16418M - cock, pump priming 16427 - cover assembly, float 16427+A - cover assembly, float 16440N - hose, fuel 16440NB - hose, fuel 16454 - connector 16454+A - connector 16676M - tube, vinyl 16753M - bolt, eye 16883 - clip 16883+A - clip 16883+B - clip 17528E - clamp, hose 17528EA - clamp, hose

Vanette Serena KVC23
